A plastic recycling machine is an industrial system designed to convert waste plastics into reusable raw materials such as flakes or pellets. The recycling process generally involves four key steps: shredding, washing, drying, and extrusion. Depending on the scale, these machines can operate as small community-based units or large industrial systems.
Beyond enabling waste reduction and resource conservation, plastic recycling also brings significant environmental benefits. By diverting plastics from landfills and incineration, recycling processes substantially decrease carbon emissions and typically consume less energy than producing virgin plastics. To maximize these benefits, modern recycling relies on advanced technologies and specialized types of plastic recycling machines that automate and streamline each stage, making the process more efficient and economically scalable.
Plastic recycling machines come in several types, each serving a unique function in the recycling process. From shredders and granulators that reduce material size to washing lines, extruders, and pelletizers, every plastic recycling machine plays a role in transforming waste into reusable raw material. Below are the main types of plastic recycling machines and how they work in practice.
Shredders are employed in recycling for size reduction and volume reduction purposes. They are often used to break down large and bulky items into smaller, manageable pieces. Shredders use a tearing or shearing action, and they may have rotating blades or other mechanisms to shred materials into various sizes. While the resulting pieces may not be as uniform as those from granulators, shredders are effective in reducing the volume of materials.

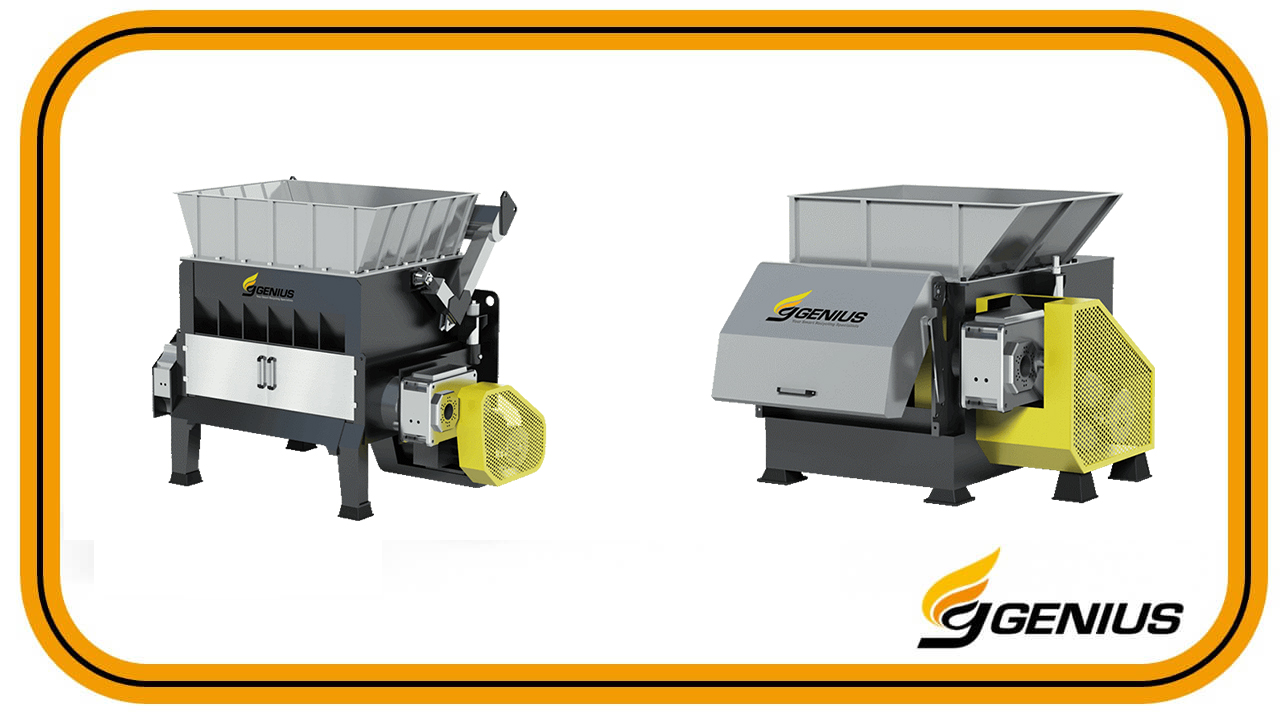

These have a single shaft with hammers or blades attached. The shaft rotates inside a screened chamber to shred the materials. They are relatively compact and inexpensive shredders suitable for low to moderate capacity recycling operations.

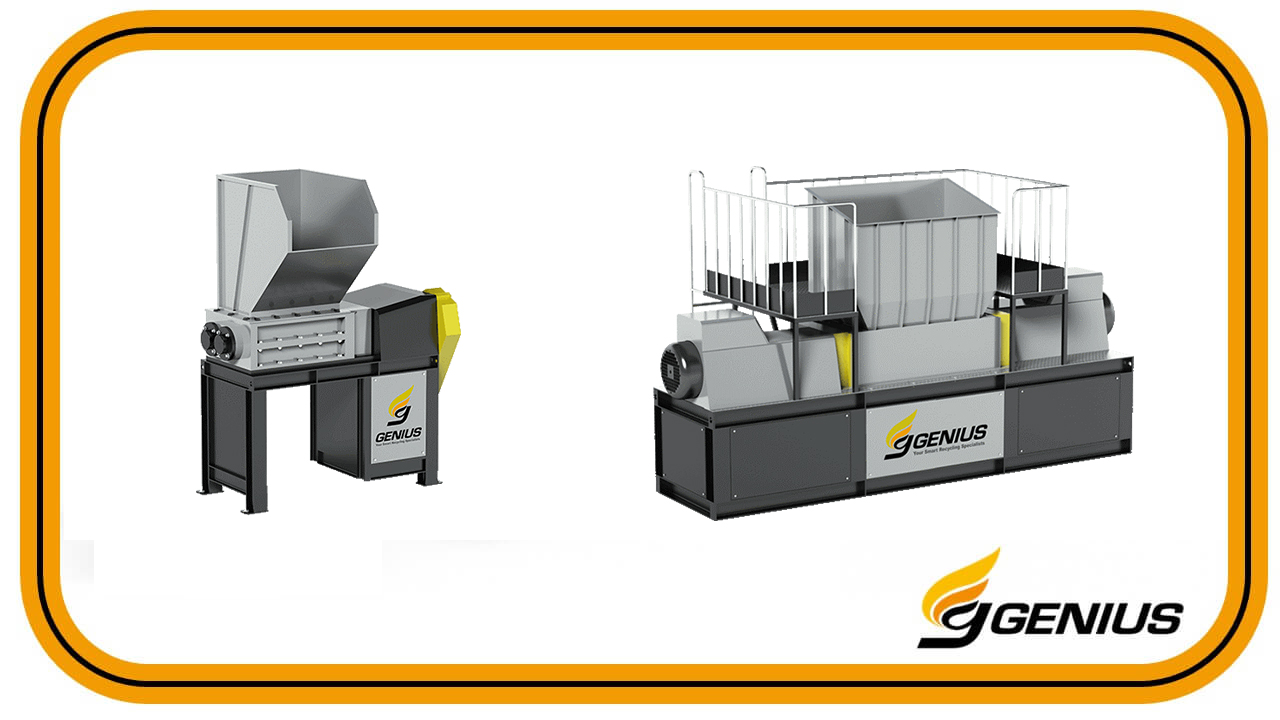

These utilize two parallel shafts with interleaving hammers or blades that grab, shear, and tear apart plastic fed between them. The dual shaft design provides more shredding power and throughput.

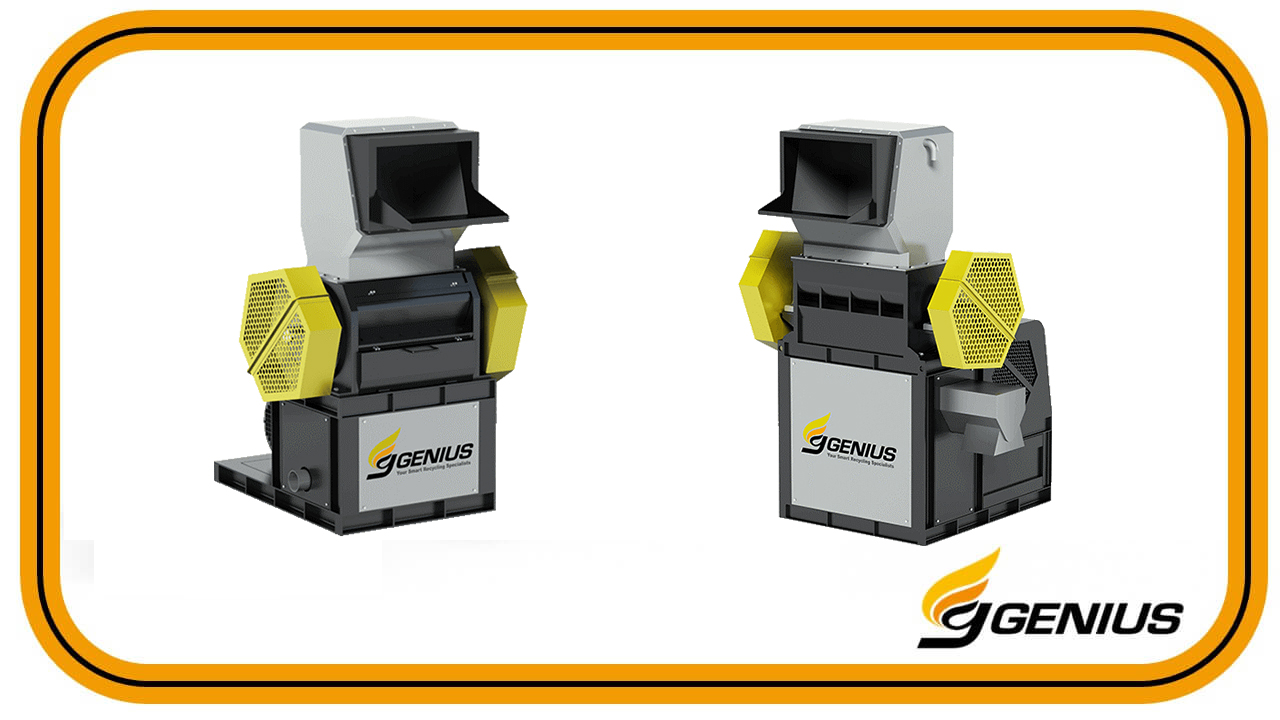

Plastic granulators provide next-stage size reduction and produce uniformly shaped plastic particles or granules. The shredded plastics are fed into a granulating chamber with sharp blades or knives, where they are cut into smaller pieces. The result is consistent granulated plastic particles in a preferred size range.
Cleaning plastic waste before recycling is essential for improving the quality of recycled materials. Plastic Washing Lines play a pivotal role in the plastic recycling process by thoroughly cleaning plastic waste before it advances to subsequent recycling stages. This critical step ensures the removal of contaminants and boosts the overall quality of recycled materials, contributing to the production of superior recycled plastics. The utilization of these higher-quality recycled plastics, in turn, decreases energy consumption during remanufacturing, leading to a notable reduction in carbon emissions.

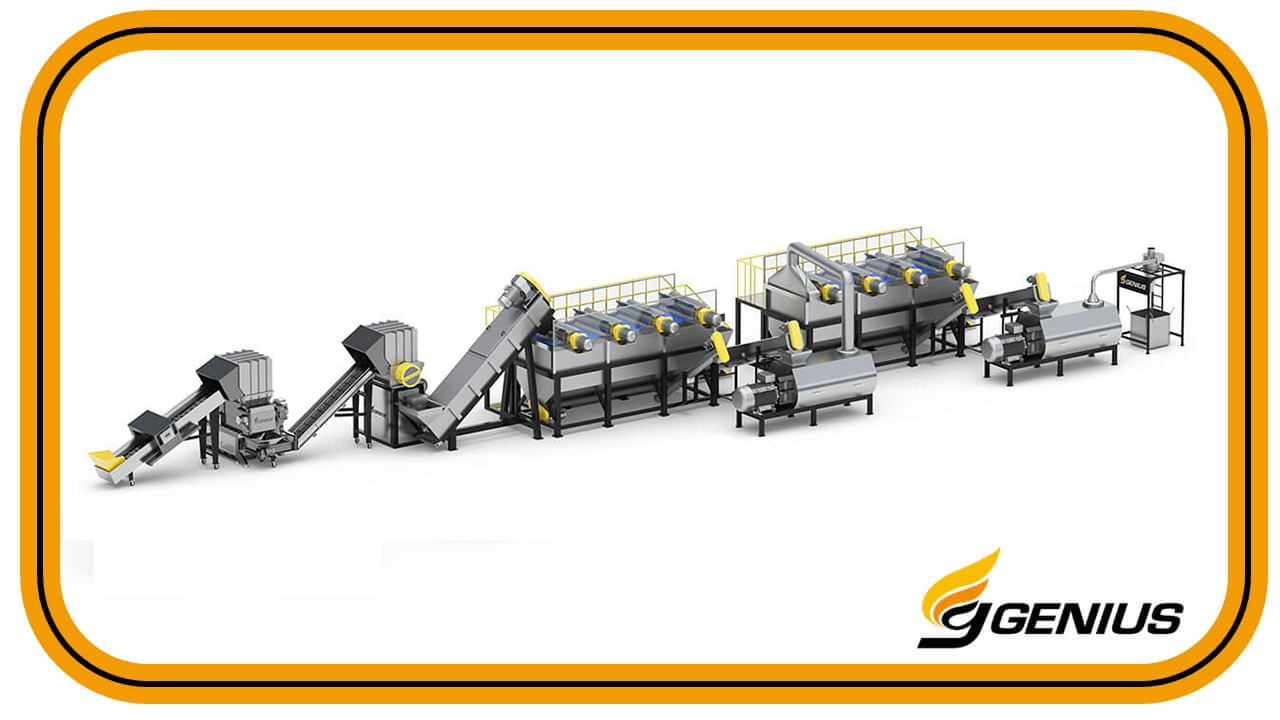

Designed to process rigid plastic materials such as containers, bottles, and other solid plastic items. Rigid washing lines employ advanced cleaning and sorting mechanisms to effectively remove impurities, labels, and residues.

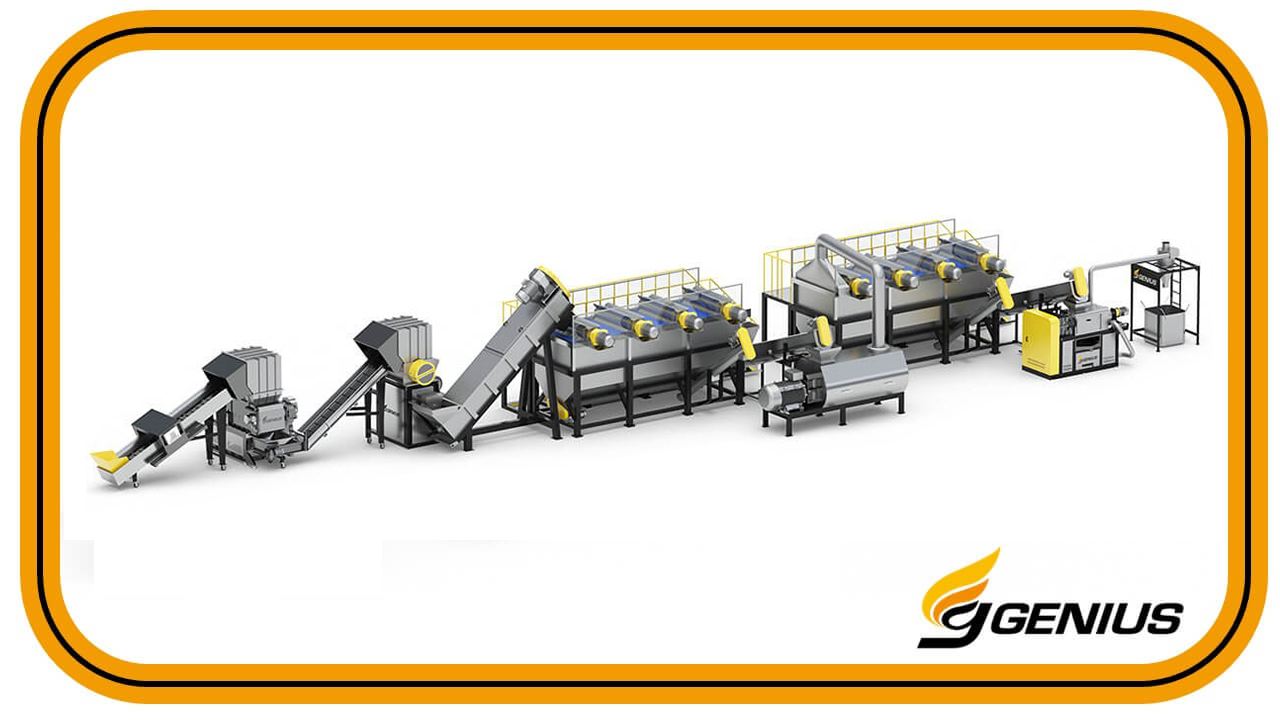

Tailored for the cleaning of plastic films, bags, and flexible packaging materials. Film washing lines with integrated squeeze dryers address the unique challenges posed by these thin and flexible plastics.

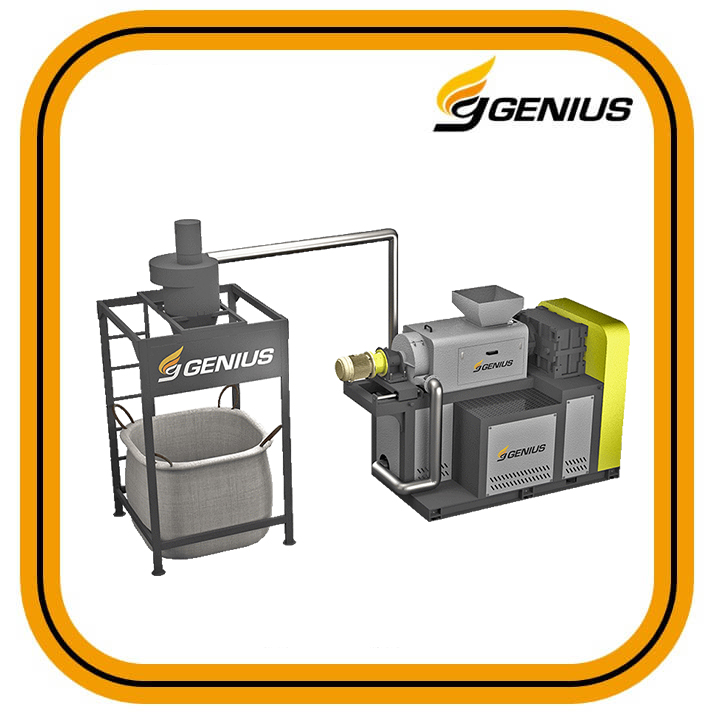

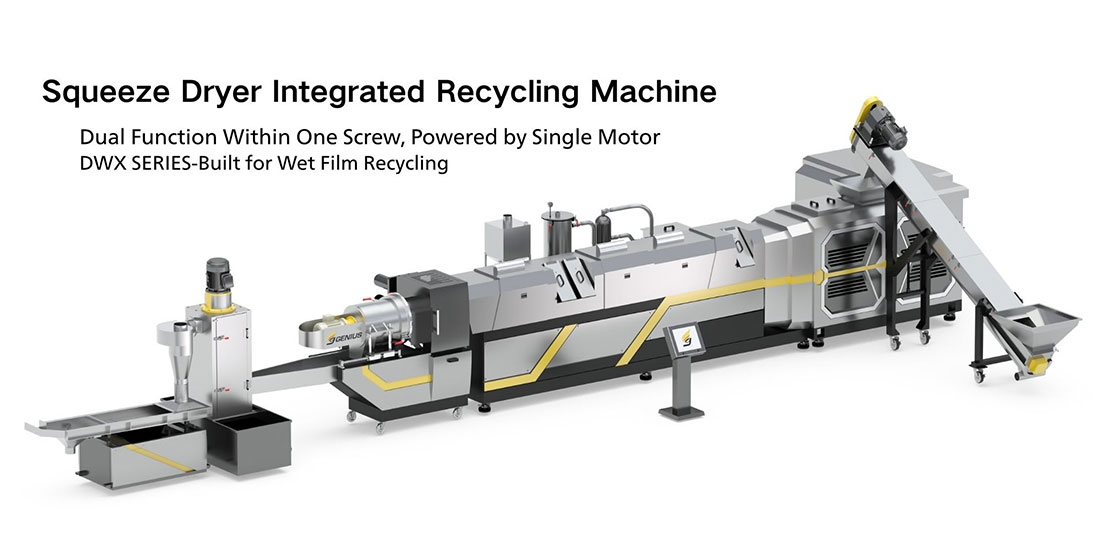

For high-moisture film scrap, conventional recycling lines often struggle with energy loss and poor pellet quality. An advanced solution is the Squeeze-Dry Pelletizing Line, which integrates mechanical dewatering with extrusion and pelletizing in one compact step, reducing energy use and line length while producing high-grade pellets.
After washing, moisture must be removed to prevent defects in the extrusion and pelletizing stages. Options include hot-air dryers, centrifugal dryer, vacuum dryers, and screw press dewatering machines. Efficient drying ensures stable melt quality and better pellet consistency.
These machines melt plastic flakes into a continuous form for new product production. Extruders are commonly used in plastic recycling lines, where they play a key role in transforming post-consumer plastics into valuable materials.
Pelletizers cut molten plastic into uniform pellets for easy transport, storage, and reuse in manufacturing. Common systems include strand pelletizers, water-ring pelletizers, and underwater pelletizers, each chosen based on throughput and material type.
In most recycling lines, pelletizers work in tandem with extruders as part of the main pelletizing system. The extruder melts and homogenizes the plastic flakes or granules, while the pelletizer ensures the molten plastic is cut into consistent pellet form. This combination forms the core of modern plastic recycling and compounding lines, enabling high efficiency, stable throughput, and reliable pellet quality.
In addition to the main types of plastic recycling machines, several auxiliary systems play a vital role in improving efficiency, protecting downstream equipment, and ensuring high-quality recycled output:
Separators classify plastics by properties such as density, size, or optical characteristics. Examples include float-sink tanks for separating PP/PE from PET, air classifiers, cyclones, and advanced near-infrared (NIR) optical sorters. Effective separation ensures material purity and reduces contamination in downstream processes.

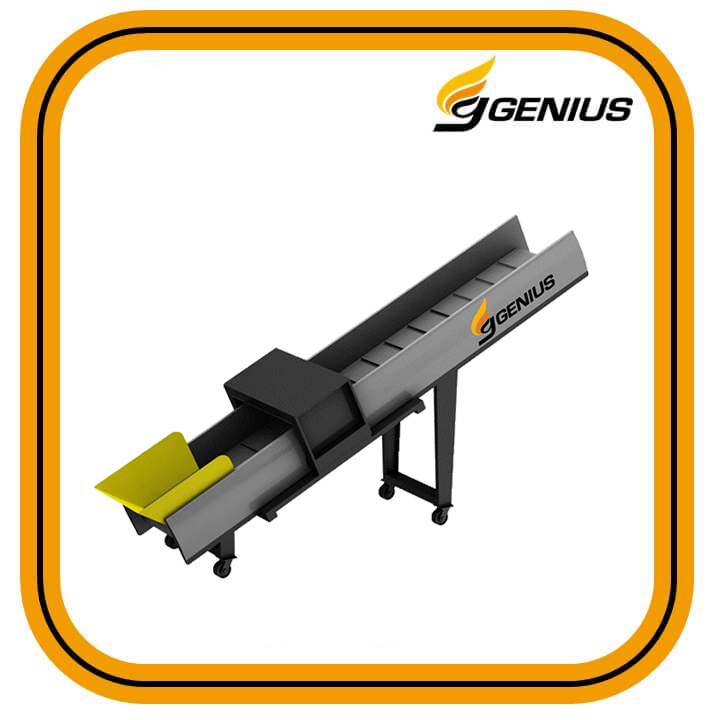

Conveyors link washing lines to pelletizing or extrusion systems, automating material transfer and reducing labor. Many systems integrate metal detectors or weighing scales to protect equipment and monitor input volume, ensuring a stable and safe production process.

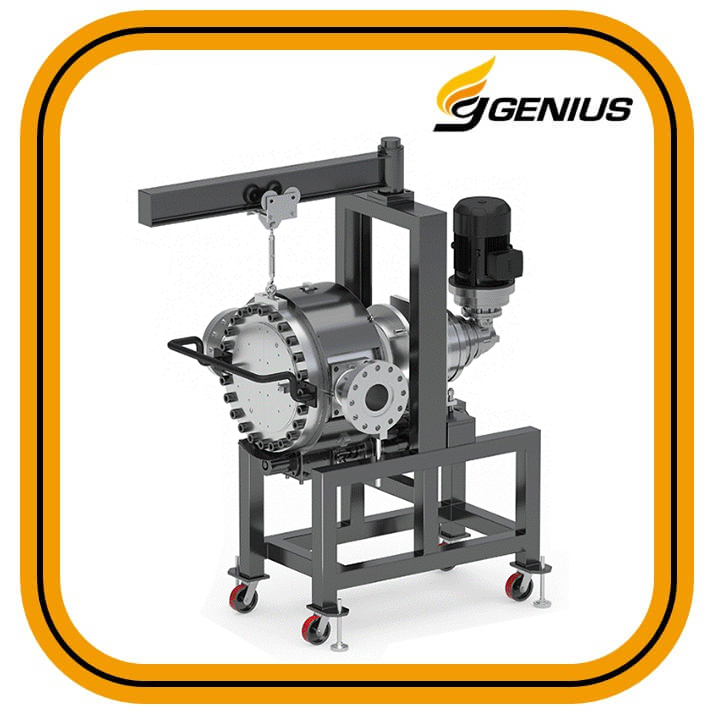

Melt filters remove impurities from molten plastic after washing and before extrusion, safeguarding product consistency and equipment lifespan. Common options include Plate Filter, Dual-Piston Filter, and Automatic self-cleaning filters.
For an in-depth guide on evaluating melt filters for your recycling lines, see:
6 Factors to Consider When Choosing Melt Filters for Plastic Recycling Extrusion Machines
Frequently required in integrated recycling lines, blenders temporarily store and homogenize material streams. By stabilizing the flow of regrind scraps and recycled pellets, they ensure a smooth, continuous output between production stages. This not only reduces material fluctuation but also improves the efficiency and reliability of downstream extrusion and pelletizing processes.
For more details on product specifications, Scraps Blenders & Pellets Blenders
| Equipment Type | Function | Example Role in Recycling Line |
|---|---|---|
| Separators | Classify plastics by density, size, or optical properties | Sorting PP/PE from PET, optical NIR sorting |
| Conveyors | Automate material transfer with optional detection systems | Moving washed flakes to extrusion line |
| Melt Filters | Remove impurities from molten plastic | Improve pellet quality, protect extruder |
| Blenders (Scraps & Pellets) | Temporary storage & homogenization of material streams | Stabilize output between washing, extrusion, and pelletizing stages |
A complete recycling line typically follows these steps:
The cost of a plastic recycling machine depends on type, processing capacity, and automation level:
These figures are estimates, but they help businesses evaluate how equipment choice and production scale impact budget planning.
While understanding the types of plastic recycling machines is essential, the actual choice depends on your business scale, investment budget, and processing needs. A small startup may only require a basic shredder, washing unit, and pelletizer, while medium- and large-scale operations often integrate multiple shredders, advanced washing lines, and fully automated extrusion systems.
For a deeper guide on how to evaluate plant sizes—from small-scale facilities to large industrial operations—you can explore our dedicated article:
Choosing the Right Plastic Recycling Plant For My Business
Optimizing the plastic recycling process for efficiency and sustainability requires investing in the right equipment. The specific machinery needs will depend on various factors, including the type of plastic waste you're processing, your desired end product, and your recycling capacity.
From shredders and granulators that break down materials to washing lines and dryers that prepare them for extrusion, each plastic recycling machine plays a critical role in maximizing quality and minimizing environmental impact. By integrating advanced types of plastic recycling machines, you can achieve significant benefits: streamlined operations, improved recycled material quality, and a drastic reduction in carbon emissions compared to virgin plastic production.
Ready to explore the best solutions for your recycling needs?
Choosing the right plastic recycling machine also depends on the type of plastic material you are processing. Factors such as HDPE, LDPE, PP, PET, or BOPP films can significantly influence equipment selection and line configuration. Genius provides professional technical evaluation to ensure you select the most efficient and cost-effective recycling solution tailored to your specific material streams.
Contact us to connect with our experts and discover how we can help you optimize your plastic recycling process.
