Squeeze-Dry Pelletizing Line — A Game-Changer for Wet Film Recycling

Turn Wet Film Into Dry Profit With Genius Squeeze Dryer Integrated Recycling Line

Join us at Genius , K-SHOW — Hall 12 Stand A15, October 8–15, 2025, Düsseldorf, Germany.



Conventional shredder–extruder lines struggle with washed film scrap containing 50% moisture—causing steam spikes, wasted energy, and brittle pellets.
Genius Machinery’s patented Squeeze-Dry Pelletizing Line turns that problem into a single-step, compact, and energy-saving solution:

  • Up to 30% lower energy use (kWh/kg)
  • 40% shorter line length
  • High-grade pellet output

Why Moisture Is the Hidden Cost Driver

  • Energy drain – Extra kWh burned to evaporate surface water
  • Quality loss – Steam flashes create bubbles and reduce IV
  • Footprint creep – Separate dryers and conveyors stretch your line and CAPEX
  • Key takeaway: Removing water before melting is the most effective way to reduce OPEX and improve pellet quality.


Squeeze-Dry → Extrude → Pelletize Architecture

Dual Function Within One Screw, Powered By Single Motor. Significant Energy Savings

Core Module

What It Does

Benefit to You

Mechanical Squeeze Dryer

Compresses wet flakes & film, forcing out free water to < 3 % before melting.

≈ 30 % energy savings

Inline Pelletizer & Centrifugal Dryer

Cuts and surface-dries pellets without extra conveyors.

Ultra-compact footprint

Smart PLC & Cloud Dashboard


Tracks OEE and energy consumption (kWh/kg); predictive alarms flag drift.
CO₂e tracking and ESG reporting available as an optional upgrade.


Data-driven maintenance & ESG reporting

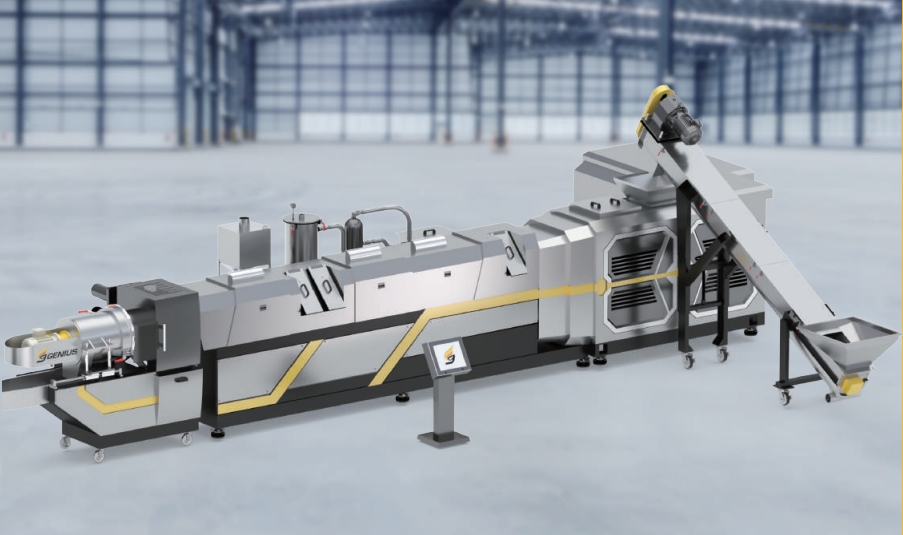

Operating Video: DWX Series Squeezing Dryer Integrated Recycling Machine

For more details on the new line: Squeeze Dryer Integrated Recycling Machine


How Genius Stacks Up. Five Reasons Engineers Choose Genius

  1. Moisture mastery – Prevents IV loss and gel formation
  2. Energy + space savings – One torque-dense drive replaces multiple motors
  3. Food-grade ready – Optional EU/FDA-compliant configuration
  4. Smart control – Closed-loop torque & pressure for steady throughput
  5. Field-proven – 1,800 h pilot run, high quality pellets

Typical Payback Example

Variable

Example Value

Line throughput

600 kg/h

Operating shifts

2 × 8 h, 300 days/year

Energy cost

US$ 0.15/kWh

Energy saved vs. compactor line

0.08 kWh/kg

Annual energy savings

US$ 34,560

Estimated CAPEX

US$ 900,000

Payback period

< 18 months


CLICK to our website for the full article: Squeeze-Dryer Pelletizing Line: Genius Machinery’s Breakthrough for Film Recycling

Take Action Now
Turn wet film into dry profit — contact our experts for a tailored layout and ROI plan.
